Underpinning / Foundation repair

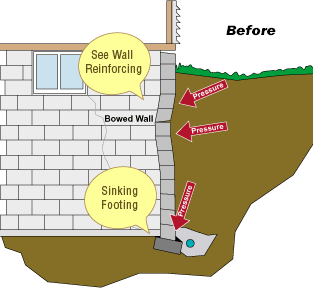

Signs of Foundation Failure:

  • Windows and doors are sticking, hard to open

  • There are large gaps in window and door frames

  • Interior plaster walls are cracking

  • Multiple nail pops are appearing in ceilings and walls

  • Walls are beginning to lean noticeably

  • Window and/or door trim are developing spaces

  • Floors are starting to settle and become uneven

  • Chimneys are tilting or leaning

  • Foundations are sinking

  • Cracks can be seen in foundations or basement walls



Grip-Tite Push Pier System® Helps you avoid further serious, costly damage to your home!

For over 70 years Grip-Tite Manufacturing has been recognized as one of the world's leading authorities in earth anchoring technology. Now Grip-Tite brings their expertise to bear on the problems of settling foundations, providing the sophisticated engineering and cost-effective solutions you've come to expect, and proving once again that Grip-Tite is your answer to all residental-commerical-industrial foundation problems

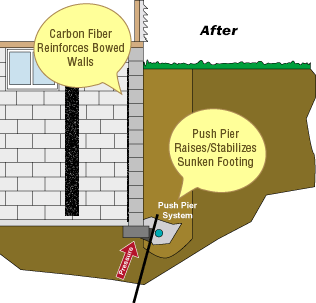

How The Grip-Tite Push Pier System® Works!

First we attach a series of Grip-Tite Push Pier brackets made of heavy, industrial-strength steel to the footing of your home.

High-pressure equipment is then used to hydraulically drive rugged, steel piers down to solid bedrock or equal load-bearing strata. This reinforcement is done below ground -- nothing is exposed.

Each pier is individually anchored and tested to meet load-bearing specifications.

Finally the weight of your home is carefully transferred from unstable soil to rock-solid piers. Your home or commercial building is secure with the pier system permanently in place and hidden from view.



Other benefits of the Grip-Tite Push Pier System®

  • No heavy equipment needed in most cases

  • No waiting weeks (28 days) for concrete to dry. The Grip-Tite Push Pier System can be installed in as little as 2 days

  • Can be installed in limited-access areas

  • Faster and lower cost than old-fashioned methods

  • Can be installed year-round
